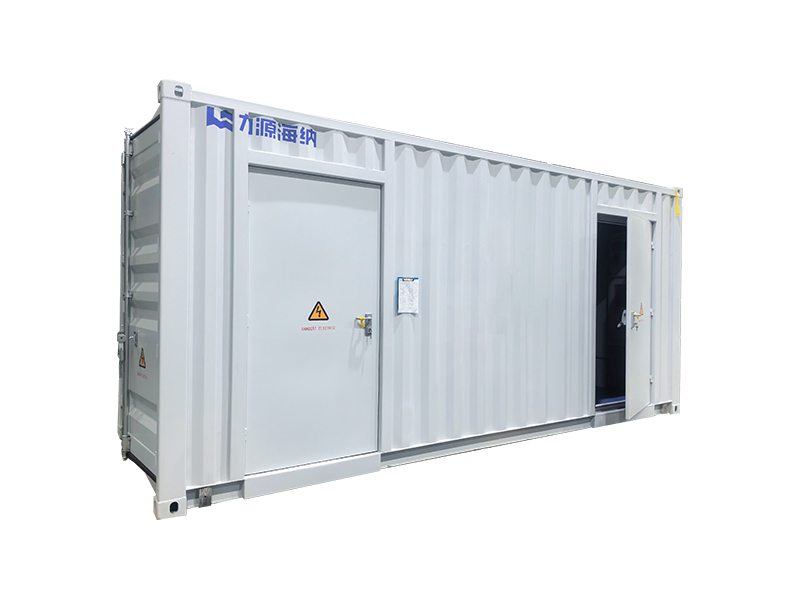

Description

KES High-Capacity Rectifier Systems convert three-phase line-frequency AC power into DC power with adjustable voltage. A typical model engineered for the copper electrolysis industry, the 21KA 95V copper electrowinning rectifier delivers precisely regulated DC power to ensure stable and efficient cathode deposition. This high-efficiency electrolysis power system ensures uniform copper ion deposition on cathode surfaces through stable current output, producing high-purity electrolytic copper. Operational data confirms that the unit reduces energy consumption per ton of copper by approximately 8–12% while raising cathode copper grade to above 99.99%. Its unique thermal management design maintains continuous operation in 45°C ambient conditions, making it particularly suitable for processing complex secondary copper materials.

The rectifier’s technical advantages directly translate to production process optimization. Through precise control of deposition parameters, it not only enhances primary copper quality but also significantly improves recovery rates of precious metals from anode slime. Operational reports from multiple smelters indicate approximately 15% increased recovery efficiency for scattered metals like selenium and tellurium, along with over 30% extended electrode service life. These improvements deliver substantial benefits across the entire electrorefining process.

Product Applications

KES high-capacity rectifier systems are widely used in electroplating, electrolysis, electrochemistry, oxidation, electrophoresis, smelting, electroforming, communications, and other fields. Their main applications include the electrolysis of non-ferrous metals such as aluminum, magnesium, lead, zinc, copper, manganese, bismuth, and nickel; the electrolysis of brine and potassium salt for the production of caustic soda, potash, and sodium; the electrolysis of potassium chloride for the production of potassium chlorate and potassium perchlorate; heating applications such as steel wire heating, silicon carbide heating, carbon tube furnaces, graphitization furnaces, and melting furnaces; hydrogen production by water electrolysis; and other high-current applications.

Copper electrowinning rectifiers, a key product line within this series, are engineered specifically for copper electrowinning, delivering precisely regulated DC power for stable and efficient cathode deposition.

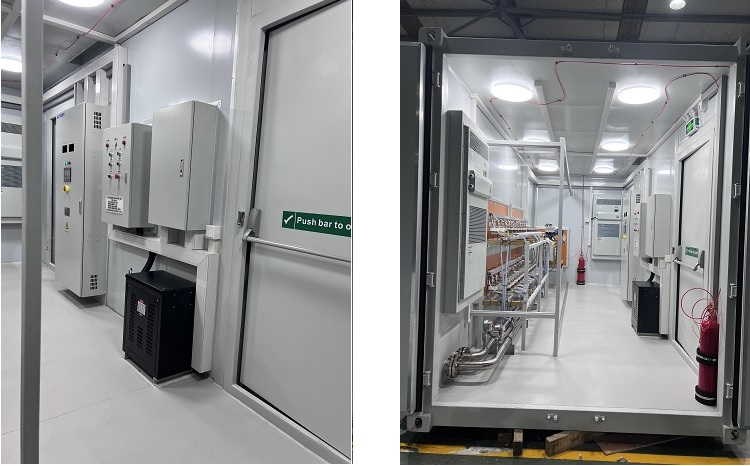

Field application diagram

Technology Advantages

› Dual-channel hot spare, scramble-free switching

› High-precision steady current control

› Critical loop redundancy design

› High reliability and stability

› User-friendly operation and easy maintenance

› Soft start and soft shutdown protection

› Automatic fault self-diagnosis

› Disturbance-free on/off loop switching

The Purpose of Copper Electrowinning

The primary purpose of copper electrowinning (EW), which produces electrowon copper, is to efficiently and economically extract high-purity metallic copper from a pregnant leach solution derived from low-grade ores or secondary materials, which are not amenable to conventional smelting methods. It is the crucial final step in the hydrometallurgical processing chain.

Cooling Type for Copper Electrowinning

Air Cooling:Heat dissipation fan + air duct + comb heat sink

Water Cooling：Built-in water circulation line

Technical Parameters

Characteristic Types	Parameter Items	Technical Requirements
Power Types	Power types	High-frequency Power Supply
	Model and specifications	KES-21KA/95V
	Cooling mode	Water-cooled
	Switch tube type	Silicon controlled rectifier
Input Characteristics	Rated Input Voltage	24-phase, AC161.6V±10%, 50HZ
	Rated Input Power	1700 KVA
	Rated Input Current	AC 1517.3A
	Input Power Factor	COSΦ≥0.95
Output Characteristics	Output Voltage	DC  95V
	Output Current	DC  21KA
	Stabilized Current Precision	≤0.5%（Rated Current)
	Pulse number	24-pulse
	Rated Output efficiency	≥91%
Environmental Conditions	Installation site	Indoor installations
	Altitude	≤1000 meters
	Ambient temperature	-20℃～40℃
	Relative humidity	≤90％
Control Mode	Operating mode	PLC, ADDA, Ethernet, RS485 and RS232
Weight	Net weight	About 7000KG
External Dimension	Height*Width*Depth	H2896mm×W2438mm×D6058mm
Protection Characteristics	With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function
*OK to Customized according to requirements*
