Integrated Photovoltaic-Energy Storage-Hydrogen Production System Solution|PV-ESS-Hydrogen System Solution

Integrated Photovoltaic-Energy Storage-Hydrogen Production System Solution

This integrated photovoltaic-energy storage-hydrogen production system solution provides both standardized and differentiated models approaches for large-scale power station utility-scale deployment.

It combines high-density, modular AC-coupled storage featuring cluster-level liquid cooling, fire-isolated design, and LFP battery safety with specialized power interfaces. Unique AC power supply capabilities enable zero grid feedback, seamless transition between renewables and grid power, and soft transfer technology to eliminate grid impact during switching. Its differentiated DC-powered solution provides an end-to-end PV-storage flexibility option, claiming approximately 5% higher efficiency versus traditional AC systems. Supporting hardware includes a solar charge controller with industry-leading 12 MPPT channels per module, wide-input DC-DC converters ensuring flexible voltage matching, and highly efficient (>98%) multi-source power inverters suitable for diverse loads. Core benefits emphasize safety, high efficiency through optimized power conversion, resilient environmental protection (IP65/IP66, C5), modular scalability, and reduced installation complexity via features like string pair consolidation. This holistic system targets significant operational efficiency and reliability for large-scale renewable energy integration.

Integrated Photovoltaic-Energy Storage-Hydrogen Production System Solution



Differentiated AC Power Supply Photovoltaic Storage System Solutions

1. Standardized AC Power Supply Large-Scale Energy Storage System Solution

› High energy density | Highly integrated

› Modular design | Safety Long lifespan.

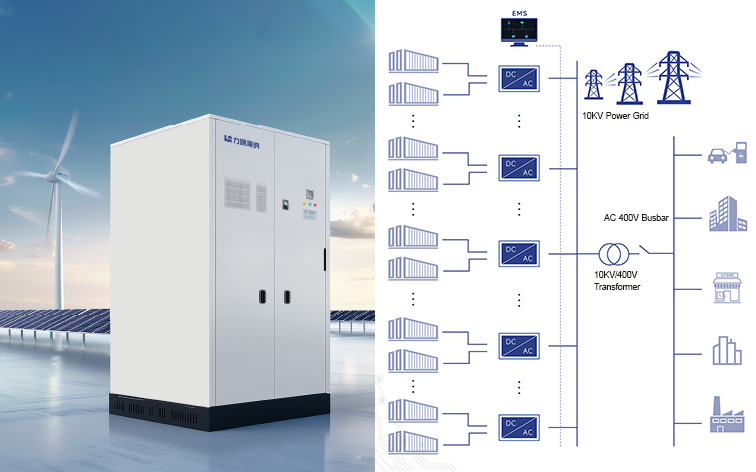

2.Differentiated AC Power Supply Photovoltaic Storage System Solutions

› Zero grid feedback - no grid absorption capacity required

› Seamless transition between renewable power and grid - eliminates power interruption

› Soft transfer technology - zero grid impact during switching

Differentiated AC Power Supply Photovoltaic Storage System Solutions



Differentiated DC-Powered Photovoltaic-Energy Storage System Solution

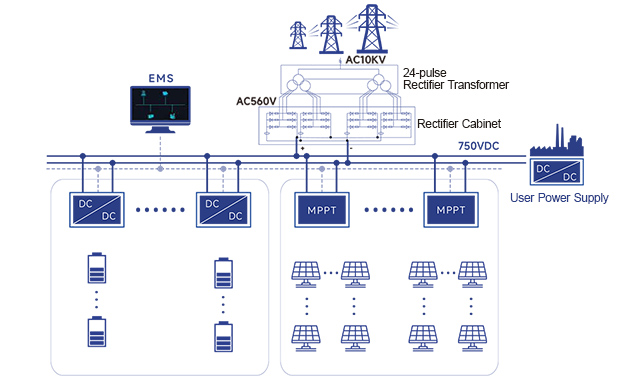

3. Differentiated DC-Powered Photovoltaic-Energy Storage System Solution

› Industry's first end-to-end DC-coupled PV-storage-flexibility solution

› 5% higher efficiency than conventional AC systems



Integrated Photovoltaic-Energy Storage-Hydrogen Production System Solution

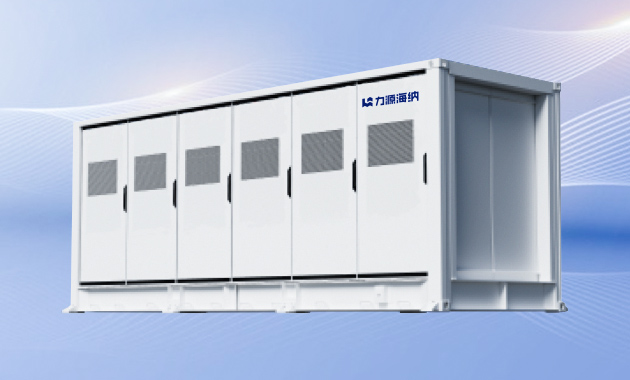

Standardized Large-Scale Energy Storage System

Advantages:

› Compact footprint

› Cluster-level liquid cooling with fire-isolated design

› Modular cluster configuration - flexible capacity scaling

› LFP battery cells: Intrinsic safety with long cycle life

Standardized Large-Scale Energy Storage System





Technical Specifications:



Parameter

ESS-Cube-5010

ESS-Cube-6012

ESS-Cube-5360

ESS-Cube-6432

DC-Side Parameters

Cell Chemistry

LFP

LFP

LFP

LFP

Configuration

2×5×1P416S

2×6×1P416S

10×1P416S

2×6×1P416S

Usable Energy @FAT

5,010 kWh

6,012 kWh

5,360 kWh

6,432 kWh

Rated Voltage

1,331.2 V DC

1,331.2 V DC

1,331.2 V DC

1,331.2 V DC

Operating Voltage Range

1,081.6–1,497.6 V DC

1,081.6–1,497.6 V DC

1,081.6–1,497.6 V DC

1,081.6–1,497.6 V DC

Rated Charge/Discharge Power

2×1,252.5 kW

2×1,503 kW

1,340 kW

2×80.4 kW

General Parameters

Dimensions (W×D×H, mm)

6,650×2,510×3,300

7,709×2,510×3,300

6,650×2,510×3,300

7,709×2,510×3,300

Weight

<43,500 kg

<51,500 kg

<43,000 kg

<51,500 kg

IP Rating

IP55

IP55

IP55

IP55

Corrosion Resistance

C4/C5 optional

C4/C5 optional

C4/C5 optional

C4/C5 optional

Cooling Method

Liquid

Liquid

Liquid

Liquid

Operating Temperature

-30°C to +55°C

-30°C to +55°C

-30°C to +55°C

-30°C to +55°C

Humidity Range

5–100%

5–100%

5–100%

5–100%

Noise Level

<75 dBA

<75 dBA

<75 dBA

<75 dBA

Fire Protection

Perfluorohexane gas + Water spray system

Auxiliary Power

AC 380V ±35V/50Hz, 3-phase 4-wire

Communication Protocol

Modbus TCP / IEC 61850

Interface Standard

RAL 7035

Compliance

GB/T 36276, GB/T 34131

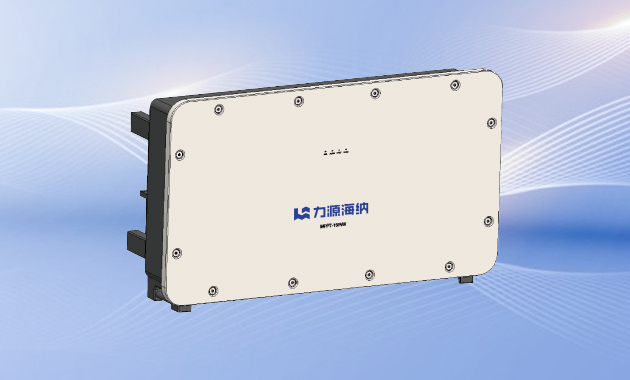

Solar Charge Controller

Advantages:

› Industry-leading 12 MPPT channels per module

› 15A per string - compatible with 500W+ panels

› String pair consolidation - reduces DC cabling costs

› Integrated DC arc detection + AC/DC surge protection

› Precision string monitoring with I-V diagnostics

› IP66 / C5 corrosion resistance - harsh environment ready

› Single-stage non-isolated topology - >98% efficiency

Solar Charge Controller





Technical Specifications:



Parameter

Specification

Model

MPPT-150KW

DC Parameters

Rated Power

150 kW

Max. Power

165 kW

Rated Input Voltage

640 V

MPPT Voltage Range

180–1,000 V

Min. Voltage / Startup

180 V / 200 V

BUS Max. Voltage

1,100 V

BUS Rated Voltage

700 V

MPPT Channels

12

Max. Input Current per Ch.

30 A

BUS Max. Current

235 A

System Parameters

Peak Efficiency

≥98%

Dimensions (W×H×D, mm)

1,127×651×320

Weight

≤100 kg

Noise

<65 dBA

Protection Class

IP66

Ambient Temperature

-40°C to +55°C (>45°C derating)

Cooling

Smart Forced Air

Humidity

0–95% (non-condensing)

Max. Altitude

4,000 m (>3,000 m derating)

Communication

Interfaces

CAN, RS485

Protocol

Modbus

BMS Support

Yes

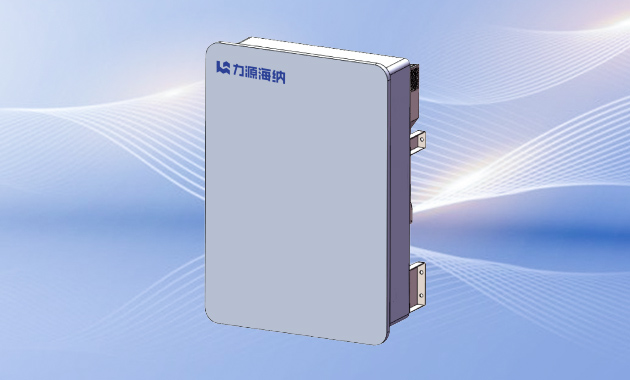

DC-DC Converter

Advantages:

› Wide 500–1,500V DC operating range

› Bidirectional voltage matching - flexible I/O configuration

› Parallel operation for power scaling

› Independent module control with multi-protection

› BMS/EMS interoperability

DC-DC Converter





Technical Specifications:



Parameter

Specification

Model

MPPT-150KW

DC Parameters

Rated Power

150 kW

Max. Power

165 kW

Rated Input Voltage

640 V

MPPT Voltage Range

180–1,000 V

Min. Voltage / Startup

180 V / 200 V

BUS Max. Voltage

1,100 V

BUS Rated Voltage

700 V

MPPT Channels

12

Max. Input Current per Ch.

30 A

BUS Max. Current

235 A

System Parameters

Peak Efficiency

≥98%

Dimensions (W×H×D, mm)

1,127×651×320

Weight

≤100 kg

Noise

<65 dBA

Protection Class

IP66

Ambient Temperature

-40°C to +55°C (>45°C derating)

Cooling

Smart Forced Air

Humidity

0–95% (non-condensing)

Max. Altitude

4,000 m (>3,000 m derating)

Communication

Interfaces

CAN, RS485

Protocol

Modbus

BMS Support

Yes



Power Inverter

Advantages:

› 3-level topology - >98% efficiency

› Multi-source input (PV + battery hybrid)

› Multi-load compatibility (resistive/inductive/capacitive/RCD)

› Single/parallel operation modes

› IP65 / C5 environmental protection

Power Inverter





Technical Specifications:



Parameter

Specification

Note

Model

INV-100KW



DC Parameters

Input Voltage Range

660–1,000 V



Max. Input Current

170 A



AC Parameters

Rated Output Power

100 kW



Max. Output Power

110 kW

Linear load

Rated Output Voltage

400 V



Rated Output Current

151.5 A



Max. Output Current

166.7 A



Frequency

50 Hz / 60 Hz



Voltage THD

3%

Rated linear load

Power Factor

≥0.99 (range: -0.8 to +0.8)



Overload Capability

110% continuous



Connection

3P/4W

3-phase 4-wire

Communication

Interfaces

RS485, CAN



Protocol

Modbus



BMS Support

Yes



EMS Connectivity

Yes



System Parameters

Efficiency

≥98%



Max. Parallel Units

≤5



Noise

≤70 dBA



IP Rating

IP65



Cooling

Smart Forced Air



Operating Temperature

-20°C to +55°C (>45°C derating)



Humidity

0–95% (non-condensing)



Max. Altitude

4,000 m (≥3,000 m derating)



Dimensions (L×W×H, mm)

987×685×325



Weight

<95 kg
