Product Description

Designed specifically for demanding applications like Precious Metal Plating and High Precision Electrolytic Polishing, this 12V 50A DC linear power supply low ripple delivers the exceptionally clean, stable power essential for flawless results. Its core strength lies in delivering very low current ripple, ensuring process consistency where even minor fluctuations are unacceptable. Engineered for high reliability, the unit features a robust yet practical structural design incorporating full soft switching technology.

Beyond pure performance, the design prioritizes durability and integration. Effective sealing and isolation provide high protective properties against environmental factors. An optimized cooling system ensures only the radiator is exposed in the air duct, maximizing efficiency while protecting internals. The practical and effective multiple protection system safeguards both the supply and your process. Flexibility is offered through standard and special wiring options, while RS485 digital control enables seamless remote monitoring and system integration. This power supply is built for dependable operation in the most exacting industrial environments.

Product Applications

Mainly used in the precious metal plating industry (including gold plating, silver plating, and jewelry plating), high-precision electrolytic polishing processes (commonly applied to stainless steel), and various other metal finishing applications.

1.Field application diagram：

2.Industry application examples:

Technology Advantages

› RS485 digital control function

› Very low current ripple

› Reasonable structural design

› Only the radiator is in the air duct

› Effective sealing and isolation

› High protective properties

› Standard wiring and special wiring

› Practical and effective multiple protection system

› Full soft switching technology

› High reliability

Role of electroplating

Stops Rust & Chemical Damage

Zinc plating on steel parts creates a barrier against corrosion.

Reduces Wear & Tear

Hard chrome plating cuts friction, making components last longer.

Looks Matter Too

Gold finishes for jewelry / Chrome for car trim – it’s about aesthetics.

Keeps Current Flowing

We plate copper onto circuit boards because it conducts electricity best.

Better Solder Joints

Tin plating helps electronics components bond properly during assembly.

Fix Worn-Out Parts

Rebuild engine crankshafts or bearings by adding new plating material.

Specialized Solutions

Aerospace needs nickel plating: handles extreme heat.

Medical implants use biocompatible coatings so bodies don’t reject them.

Types of electroplating

Copper Plating
Primarily for base layers – boosts corrosion resistance and helps subsequent coatings stick better.
Watch for: Oxidation (forms non-conductive patina). Always needs a topcoat.

Nickel Plating
Works as a base layer or decorative finish. Fights corrosion/wear – electroless nickel rivals chrome durability.
Heads-up: Magnetic nature messes with electronics (e.g., DIN connectors). Avoid in signal-critical areas.

Gold Plating
King of contact surfaces: Optimizes conductivity and signal clarity.
Stable performance; High cost

Palladium-Nickel Plating
Outperforms gold: Better signal transmission + extreme wear resistance.
Why it wins: Palladium’s anti-corrosion + nickel’s hardness.

Tin-Lead Plating
Was the solderability champ, now phased out (lead regulations).
Switched to: Bright/matte tin alternatives.

Silver Plating
Unbeatable conductivity/signal quality – still works when oxidized.
Downsides: Tarnishes without maintenance; premium pricing.

Elements of Electroplating

› Cathode
The object to be plated (e.g., connector terminals or metal surfaces) where metal ions deposit into a solid coating.

› Electroplating Anodes Explained

Soluble Anodes
• Material: Matching plating metal (e.g., copper anodes for copper baths)
• Function: Dissolves to maintain metal ion concentration
• Key use: Standard plating operations

Insoluble Anodes
• Material: Non-consumable substrates
• Function: Facilitates electron transfer without dissolution
• Key use: Precious metal plating (white gold, etc.)

› Plating Solution
Contains ions of the target metal. Composition and concentration determine coating thickness, adhesion, and appearance.

› Plating Tank

Material Requirements:
• Must handle corrosive environments and thermal cycling
• Typical choices: polypropylene or titanium alloys

Role: Stores solution and maintains stable plating conditions.

› Rectifier

Converts AC to DC power to drive electrolysis.

Adjust voltage/current to control deposition speed and coating thickness.

› Auxiliary Equipment

​Filters: Remove impurities from the solution.

​Heaters: Maintain solution temperature.

​Stirrers: Ensure uniform mixing.

Component Part for Electroplating

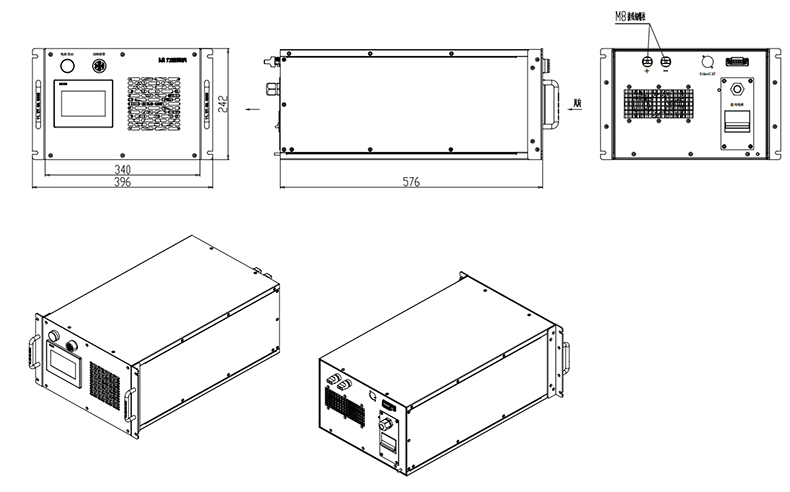

External Dimensions

Cooling Type for Electroplating

Air Cooling:Heat dissipation fan + air duct + comb heat sink

Water Cooling：Built-in water circulation line

Technical Parameters

Parameter Items	Technical Requirements
Input voltage	single-Phase AC240V±10% 50/60Hz
Rated input power	0.88KVA
Rated input current	AC 3.7A
Output current	DC 0~50A
Output voltage	DC 0~12V
Rated steady current precision	≤0.1%
Rated steady voltage precision	≤0.1%
Display resolution	0.001A, 0.01V
Current ripple coefficient	≤0.3%
Rectification method	MOSFET rectification
Control mode	CC、CV
Setting Mode	Local touch screen control
Features included	1. Ampere Hour Counter (Totalizer) 2. Preset Counter 3. Ramp Function (Start/Stop) 4. Timer Function for Auto-Switch-Off 5. Voltage/Current Monitoring 6. Operating Hour Counter
Power composition	A single module
Cooling method	Air Cooling
Installation site	Indoor installations
Altitude	≤2000 m
Ambient temp	-20~40℃
Relative humidity	≤90%
Noise	≤75dB
Protection Characteristics	Overvoltage, undervoltage, overcurrent, phase loss, short circuit, overheating

Solution

Liyuan will keep up with the world’s latest technology closely, and uphold the concept of providing customers with high-quality power supplies and professional integrated services.

With advanced design and rich experience in rectifier manufacturing, we will provide the best power solutions as well as the most stable and efficient power supply for users both at home and abroad.

Technical Capability

LIYUAN rectifier is the most competitive brand in China

Company relies on strong technology research and development cooperation basis, created a number of advanced technology, in recent 3 years amounted to more than 30 to apply for a patent, which has nearly 10 patents of invention.

Equipped with the national electric power transformation and control engineering technology research center (branch), and has set up a loan enterprise academician workstation.

Strict implementation of ISO quality management system, and through the CE safety certification, has been implementing ERP management for many years, to achieve the network, systematic computer control, the formation of a standard, efficient modern management system.

Qualification certification

Liyuan adhere to innovation and the continuous improvement of power conversion efficiency and product quality.

The increasing R&D investment every year, and cooperation with China’s well-known universities, we has established the research center of national electric power conversion and control engineering technology.

Especially the related core patents of high-power synchronous rectifier power supply, stay ahead of the whole industry in China.

The ISO 9001 quality management system has been fully implemented in Liyuan, including quality inspection of components in warehouse, production process inspection, and final product inspection.

We adopt advanced scientific quality management system and the most stringent testing methods in the whole process to ensure the stability and reliability of products.

Service

› Packing

1.Small size rectifier packing in carton box separately.

2.Large size rectifier will be packed in wooden case.

3.We guarantee that all the packing is intact when it reaches its destination.

› Shipping

1.30-45 Days after payment.

2.Transport: DHL, FEDEX, UPS, Air shipping, Boat shipping

3.You may choose our shipping partner or your own partner.

› Maintenance

We are pleasant to share our theory and experience on equipment maintenance with users.

We are pleasant to interact with users to collect their tips and know-hows on equipment maintenance.

The module “Maintenance” here is intended to help users solve various problems they possibly encounter during equipment maintenance…

If you need other power electroplating rectifiers, we can custom design them according to customer requirements. Please contact us.
