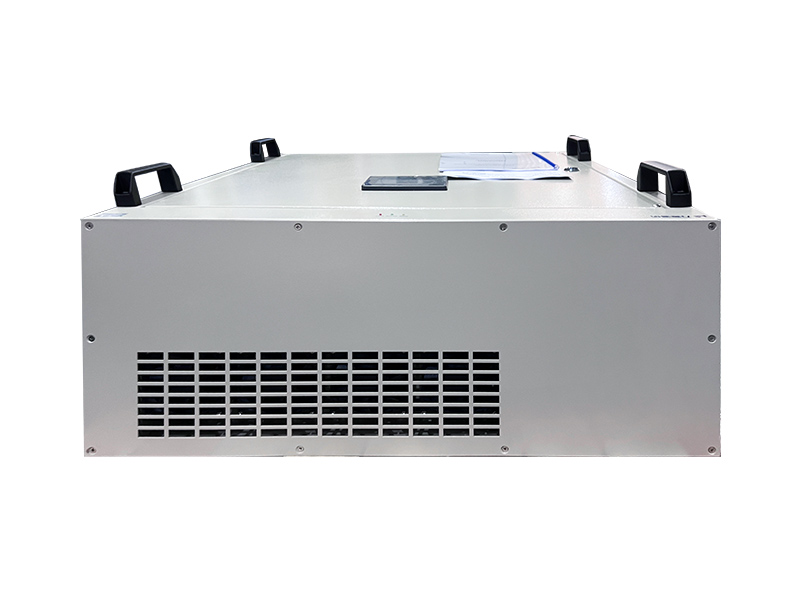

200A ±100V Water Treatment Rectifier

Input parameters: Three phase, AC480V ,60HZ
Output parameters: DC 0~±100V 0~200A
Output mode: Automatic reverse
Cooling method: Air cooling
Power supply type: High frequency switching power

Application Industry: Water treatment industry, such as wastewater treatment, seawater desalination, ballast water treatment, seawater or salt water sodium hypochlorite.

Features

Adjustable: Power output adjustment range: 0~100% rated voltage continuously adjustable, 0~100% rated current continuously adjustable, voltage and current can be adjusted independently.
Remote control: All power supplies can be displayed and controlled locally, or remotely in PLC display and control, all equipped with RS485 communication module, each power supply includes local and remote PLC voltage regulation/current regulation, local and remote PLC output voltage display/output current display, local and remote PLC start/reversing, local display of power supply operation status and feedback to PLC (running, forward, fault, local/remote), remote control can be controlled by 4~20MA analog signal.
Soft start and stop: The power supply has soft start and soft stop functions, and the soft start time and soft stop time are set on the on-site cabinet.s
Reserved terminals: The power supply has interlocking function and reserved terminals, which are used to connect with the passive normally open contacts inside the cabinet of Party A. When the signal is disconnected, the power supply starts output statically.

Products Applications

Water Treatment Rectifier is a rectifier specifically designed for the water treatment industry, which converts alternating current (AC) into direct current (DC) to drive electrolysis, disinfection, and redox reactions in the water treatment process. This equipment is essential to improving water quality, removing pollutants, and ensuring water safety.

500A ±100V SCR Water Treatment Electrolysis Rectifier Applications

Product Advantage

Our DC power supply is widely used in water treatment, wastewater treatment,electrolytic treatment of wastewater and waste liquid, and precious metal recycling places.

500A ±100V SCR Water Treatment Electrolysis Rectifier Advantage

Parameters

Feature Type	Parameter		Technical Requirements
Input feature	Rated input voltage		Three-phase AC480V 60Hz，In line with the national power quality standards
	Rated input current		AC 28.1A
	Rated input power		23.4KVA
	Rated input power factor		COSΦ≥0.95
Output feature	Output voltage		DC 0~±100V adjustable
	Output current		DC 0~200A adjustable
	Stabilized current precision		≤1%
	Stabilized voltage precision		≤1%
	Display precision		1A，0.1V
	Ripple coefficient of the rated current		≤3%（I≥50%Id）
	Rated output efficiency		≥90%
Insulation feature	Insulation resistance		Input-output: ≥5MΩ
			Input-shell: ≥5MΩ
			Output-shell: ≥5MΩ
Protection features	It has self-protection function under abnormal conditions such as overvoltage, overcurrent, overload, short circuit and overheat
Other features	Noise	≤75dB
	Operating status	The product can run full-loaded continuously.
	Load level	Level Ⅱ
	Insulation grade of the transformer	Grade B

Optional models

Application	Features	Model	Output Parameters
Water treatment	Polarity reversing	HIFA-50A/200V	±200Vdc/50A
		HIFA-60A/250V	±250Vdc/60A
		HIFA-80A/150V	±150Vdc/80A
		HIFA-130A/200V	±200Vdc/130A
		HIFA-150A/120V	±120Vdc/150A
		HIFA-150A/150V	±150Vdc/150A
		HIFA-150A/200V	±200Vdc/150A
		HIFA-150A/240V	±240Vdc/150A
		HIFA-180A/220V	±220Vdc/180A
		HIFA-180A/400V	±400Vdc/180A
	Regular	TBFB-1000A/24V	24Vdc/1000A
		HIFB-1000A/30V	30Vdc/1000A
		TBFB-1200A/24V	24Vdc/1200A
		TBFB-1500A/24V	24Vdc/1500A
		HIFB-2000A/20V	20Vdc/2000A
		TDFB-440A/110V	110Vdc/440A
		TDFB-170A/110V	170Vdc/440A
		KES-8.7KA/655V	655Vdc/8.7KA
		KGFB-400A/750V	750Vdc/400A
		TDFB-500A/100V	100Vdc/500A
		TDFB-100A/110V	110Vdc/100A

If you require water treatment power supplies with different specifications, we can custom-design them to meet your requirements. Please contact us for more information.
