Features

• High efficiency and remarkable energy-saving effect.
• High power factor, less pollution to power grid.
• Output voltage, current, adjustable, constant voltage,constant current automatic conversion.
• Communication interface function: remote control of power supply.
• Alarm function: it has the alarm functions of over current, over voltage, over temperature and phase loss.

Description

In a 450A 30V electrolytic pickling rectifier DC power supply for electrolysis, after the AC input voltage is filtered by a rectifier circuit, high-voltage DC power is obtained. The "variable frequency conversion" stage inverts this high-voltage direct current into approximately 30kHz high-frequency alternating current. This high-frequency AC is then transformed into secondary voltage via a high-frequency transformer and filtered through a high-frequency rectifier circuit to produce the required output voltage. The electrolysis rectifier  employs a control circuit to sample output voltage and current. These sampled signals undergo closed-loop feedback to generate pulse width modulation (PWM) signals, which regulate the inverter circuit and maintain stable output voltage/current - a critical requirement for precision electroplating applications.

Advantages of IGBT Rectifiers

Ultra low pressure drop

Synchronous rectification of MOS tube with ultra low voltage drop.

Patent structure design

Patented high-freguency transformer Structural design, more energy saving.

Patent cooling structure

Patented water-cooling structure,

metal cooling plate with built-in cooling water pipe.

Patent structure design

Patented high-frequency transformer structure design more energy saving advantages.

EMC design

Electromagnetic compatibility design the work does not affect the normal operation of other equipment.

Fast backup technology

Fast online redundancy backup technology.

Products Applications

Electrolytic Pickling Rectifiers are widely used in industries such as metal surface treatment, electroplating, chemical processing, and electronics manufacturing.

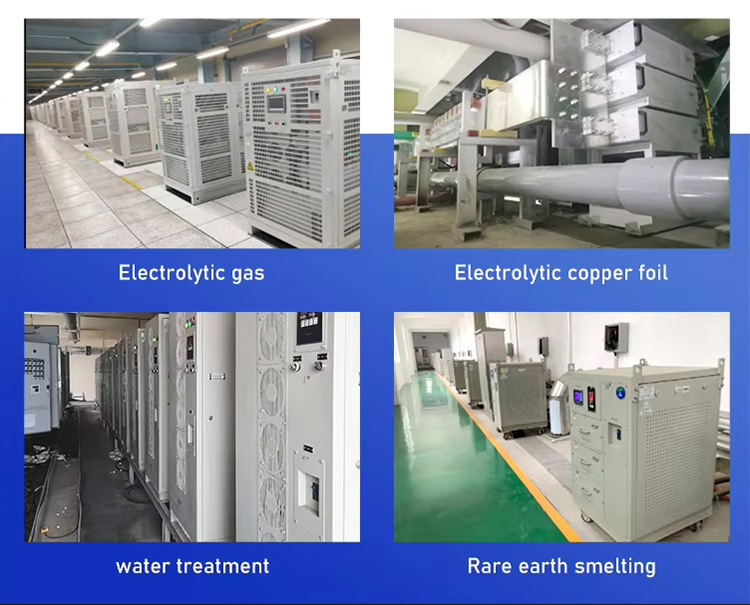

Field application diagram：

Component Part for Electrolysis Rectifier

Cooling Type for Electrolysis Rectifier

Air Cooling:Heat dissipation fan + air duct + comb heat sink

Water Cooling：
Built-in water circulation line

Parameters

Attribute type	Parameter items		Technical requirements
Input characteristics	Rated input voltage		Three-phase AC 380V ± 10% 50HzIn line with the national power quality standards
	Rated input current		AC 24.0A
	Rated input power		15.8KVA
	Rated input power factor		COSΦ≥0.95
Output characteristics	Output voltage		DC  0～30V adjustable
	Output current		DC  0～450A adjustable
	Steady current precision		≤1%
	Steady voltage precision		≤1%
	Display accuracy		1A，0.1V
	Rated output efficiency		≥90%
Insulation characteristics	Insulation resistance		Input-output: ≥ 5MΩ
			Input-chassis: ≥ 5MΩ
			Output-chassis; ≥5MΩ
Protection characteristics	It has self-protection function under abnormal conditions such as overvoltage, overcurrent, overload, short circuit and overheat
Other characteristics	Noise	≤75dB
	Operating status	Continuous full load operation of the product
	Load grade	Grade II
	Insulation grade of transformer	Class B
	Weight	73kg

If you require electrolysis rectifier in other specifications, we can customize the design to match your exact needs. Please feel free to contact us for more details.
