Input parameters: Three phase AC400V±10% 50Hz, three-phase unbalance degree≤5%,In line with the national power quality standards.
Output parameters: DC 0~640V 0~460A
Output mode: Ordinary DC
Cooling method: Air cooling
Power supply type: Silicon controlled power supply
Application Industry: Marine rectifiers provide stable DC power for ships and offshore platforms, supporting anti-corrosion, propulsion, electrolysis and industrial control systems.

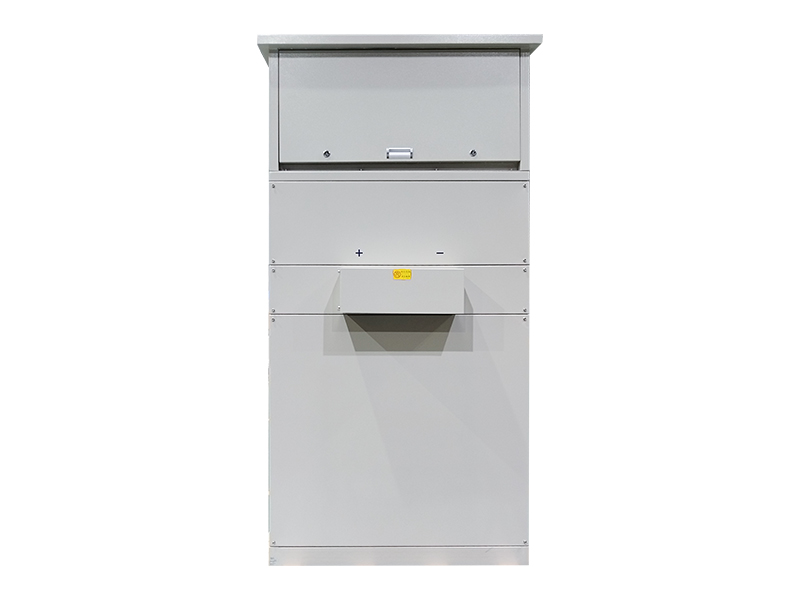

Designed for marine and industrial use, the KGFB-460A/640V is a high-efficiency marine rectifier that uses Silicon Controlled Rectifier (SCR) technology to convert three-phase AC power into stable DC output.This marine rectifier employs advanced phase-control technology and a closed-loop control system to deliver precise regulation of voltage and current. The system is intended for applications that require reliable DC power together with compact installation and dependable long-term operation under demanding conditions, making it a specialized marine rectifier for harsh environments.
Product Applications
For marine and offshore applications, marine rectifiers are used to supply stable and continuous DC power for critical electrical equipment. As a robust marine rectifier, it is frequently installed in anti-corrosion protection systems, propulsion support units, electrolysis equipment and industrial control applications onboard ships and offshore platforms. This marine rectifier is designed to perform reliably in demanding ocean environments.

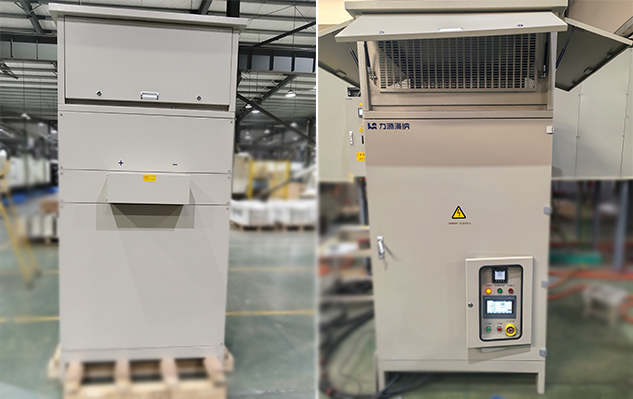

Field application diagram
Technology Advantages
Control & Regulation › RS485 digital control function (MODBUS-RTU protocol) – supports remote monitoring and automation for this marine rectifier. › Closed-loop phase control – samples output voltage and current in real time for stable regulation of the marine rectifier. › Dual-mode operation – switchable between constant current (CC) and constant voltage (CV) stabilization. › High stabilization precision – current and voltage precision ≤1%
Power Performance › High power factor – COSΦ ≥0.95 › High efficiency – rated output efficiency ≥90% › Wide output range – DC 0–460A / 0–640V, fully adjustable › High reserve factor – silicon component voltage and current reserve ≥3 times
Structural & Thermal Design › Reasonable structural design – horizontal type, compact footprint (H1750×W850×D1300mm) › Only the radiator is in the air duct – minimizes dust accumulation on electronic components of the marine rectifier › Effective sealing and isolation – protects internal electronics from contamination › High protective properties – suitable for harsh marine/industrial environments, as expected from a durable marine rectifier
Protection & Reliability › Practical and effective multiple protection system – includes over-voltage, over-current, phase loss, soft start, and over-heat protection › High reliability – MTBF ≥50,000 hours
› Optional N+1 redundant backup › Full soft switching technology – reduces switching losses and electromagnetic interference › High insulation strength – AC1000V, 10mA, 1 minute › High insulation resistance – ≥5MΩ
Wiring & Installation › Standard wiring and special wiring – flexible copper bar or cable connections › Clear grounding requirements – ground resistance <4Ω, dedicated grounding stud › Sufficient maintenance space – >1m front and back reserved in design
Schematic Diagram & Working Principle
The AC input is controlled by SCRs and sent to a transformer to obtain low-voltage AC. It is then rectified into DC output to supply the required voltage and current. The control circuit samples output voltage and current, applies closed-loop feedback, and uses phase control to adjust the SCR triggering angle, ensuring stable output of this marine rectifier.

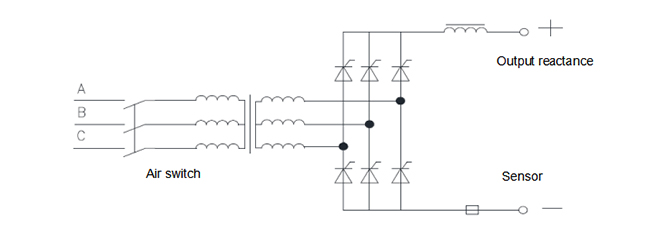

Schematic Diagram of Main Circuit
Cooling Type for Marine Rectifier
Air Cooling:Heat dissipation fan + air duct + comb heat sink
Water Cooling：Built-in water circulation line
Technical Parameters
Feature Type
Parameter
Technical Requirements
Input feature
Rated input voltage
Three phase AC400V±10% 50Hz, three-phase unbalance degree≤5%,In line with the national power quality standards.
Rated input current
AC 555 A
Rated input power
384 KVA
Rated input power factor
COSΦ≥0.95
Output feature
Output voltage
DC 0～640V
Output current
DC 0～460A
Stabilized current precision
≤1%
Stabilized voltage precision
≤1%
Display precision
1A， 1V
Even coefficient between rectifier arms
≥0.9
Reserve factor
Silicon component voltage and current reserve≥3 times
Rated output efficiency
≥90%
Insulation feature
Insulation strength
Input-output: AC1000V, 10mA, 1 minute
Input-shell:AC1000V,10mA,1 minute
Insulation resistance
Input-output:≥5MΩ
Input-shell: ≥5MΩ
Output-shell: ≥5MΩ
Protection features
With protection functions, such as over-voltage, over-current, phase loss, soft start and over-heat
Other features
Noise
≤65dB
MTBF
≥50000h
Load level
Level Ⅱ
Insulation grade of the transformer
Grade F
Input-output:
The product can run at full load continuously
