Application Industry: Water treatment industry，such as wastewater treatment, seawater desalination, ballast water treatment, seawater or salt water sodium hypochlorite.
Adjustable: Power output adjustment range: 0~100% rated voltage continuously adjustable, 0~100% rated current continuously adjustable, voltage and current can be adjusted independently.
Remote control: All power supplies can be displayed and controlled locally, or remotely in PLC display and control, all equipped with RS485 communication module, each power supply includes local and remote PLC voltage regulation/current regulation, local and remote PLC output voltage display/output current display, local and remote PLC start/reversing, local display of power supply operation status and feedback to PLC (running, forward, fault, local/remote), remote control can be controlled by 4~20MA analog signal.
Soft start and stop: The power supply has soft start and soft stop functions, and the soft start time and soft stop time are set on the on-site cabinet.s
Reserved terminals: The power supply has interlocking function and reserved terminals, which are used to connect with the passive normally open contacts inside the cabinet of Party A. When the signal is disconnected, the power supply starts output statically.
Description

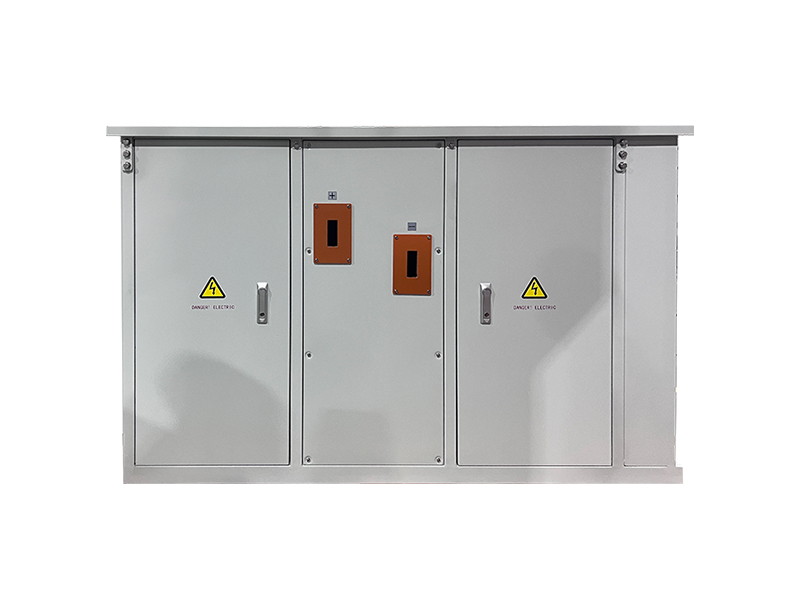

The Rectifier for Electrochlorination is a key technology in electrochemical water treatment, enabling the efficient production of sodium hypochlorite from seawater or brine. This Rectifier for Electrochlorination process is widely used for disinfection and biofouling control in various industrial and municipal applications. The Rectifier for Electrochlorination ensures reliable and sustainable water treatment solutions, making it indispensable for industries requiring effective electrochemical methods.
Water treatment rectifier is a special equipment to provide chemical electric field environment for water treatment by chemical method. Widely used in electrolytic process wastewater treatment, seawater desalination, ballast water treatment, seawater or salt water sodium hypochlorite (electric chlorination), used in industry, small, residential areas, schools and other water bodies, ballast water treatment; Seawater treatment for industries that use seawater as a cooling system, such as cooling power plants, petrochemical industries, LNG terminals, desalination facilities and other coastal industries.
Parameters
Characteristic Types
Parameter Items
Technical Requirements
Power Types
Power types
High-frequency Power Supply
Model and specifications
KHS-8.5KA/150V
Cooling mode
Water-air cooled
Switch tube type
SCR
Input Characteristics
Rated Input Voltage
Three-phase, AC255V±5%，50Hz±2%
Rated Input Power
1083KVA
Rated Input Current
AC 2454A
Input Power Factor
COSΦ≥0.95
Output Characteristics
Output Voltage
DC 0-150V
Output Current
DC 0-8500A
Stabilized Current Precision
≤1%（Rated Current)
According to accuracy
10A,0.01V
Rated output efficiency
≥94%
Environmental Conditions
Installation site
Indoor installations
Altitude
≤1500 meters
Ambient temperature
-20℃～40℃
Relative humidity
≤90％
Control Mode
Operating Mode
PLC, ADDA, Ethernet, RS485 and RS232
Protection Characteristics
With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function
*OK to Customized according to requirements*
Optional models
Application
Features
Model
Output Parameters
Water treatment
Polarity reversing
HIFA-50A/200V
±200Vdc/50A
HIFA-60A/250V
±250Vdc/60A
HIFA-80A/150V
±150Vdc/80A
HIFA-130A/200V
±200Vdc/130A
HIFA-150A/120V
±120Vdc/150A
HIFA-150A/150V
±150Vdc/150A
HIFA-150A/200V
±200Vdc/150A
HIFA-150A/240V
±240Vdc/150A
HIFA-180A/220V
±220Vdc/180A
HIFA-180A/400V
±400Vdc/180A
Regular
TBFB-1000A/24V
24Vdc/1000A
HIFB-1000A/30V
30Vdc/1000A
TBFB-1200A/24V
24Vdc/1200A
TBFB-1500A/24V
24Vdc/1500A
HIFB-2000A/20V
20Vdc/2000A
TDFB-440A/110V
110Vdc/440A
TDFB-170A/110V
170Vdc/440A
KES-8.7KA/655V
655Vdc/8.7KA
KGFB-400A/750V
750Vdc/400A
TDFB-500A/100V
100Vdc/500A
TDFB-100A/110V
110Vdc/100A
If you need other water treatment rectifiers, we can custom-design them according to customer requirements. Please contact us.
Are you looking for a 150V 8500A rectifier for electrochlorination? Liyuan Haina Rectifer is one of the professional manufacturers and suppliers in this field. With over 27 years of focus on R&D, design, production, sales, and technical services for industrial rectifiers, we have already exported our products to the United States, Canada, Britain, Italy, Spain, South Africa, Russia, the UAE, Japan, South Korea, Malaysia, and other parts of the world. Equipped with a productive factory, we warmly welcome you to purchase our high-quality, Made-in-China products at competitive prices. We also offer customized services to meet your needs.
