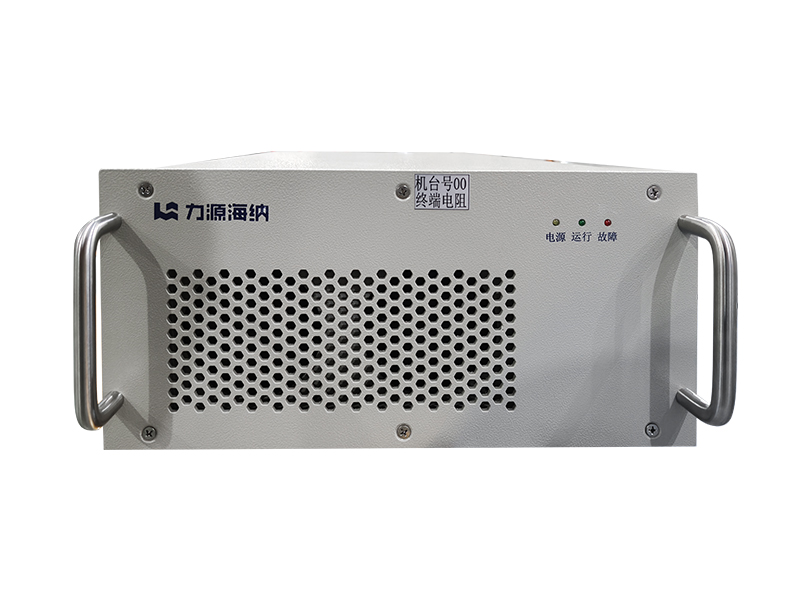

Description

Rectifier for Copper Electrolysis Industry, the 8V 50A Copper Electrowinning Rectifier serves as the core power source, delivering precisely regulated DC supply for the cathode deposition process. This high-efficiency electrolysis power system ensures uniform copper ion deposition on cathode surfaces through stable current output, producing high-purity electrolytic copper. Operational data confirms the unit reduces energy consumption per ton of copper by 8-12% while elevating cathode copper grade above 99.99%. Its unique thermal management design maintains continuous operation in 45°C ambient conditions, particularly suitable for processing complex secondary copper materials.

The rectifier’s technical advantages directly translate to production process optimization. Through precise control of deposition parameters, it not only enhances primary copper quality but also significantly improves recovery rates of precious metals from anode slime. Operational reports from multiple smelters indicate approximately 15% increased recovery efficiency for scattered metals like selenium and tellurium, along with over 30% extended electrode service life. These improvements deliver substantial benefits across the entire electrorefining process.

Product Applications

Copper electrowinning rectifiers are primarily deployed in electrolytic refineries for cathode production, secondary copper processing plants, precious metal recovery operations, as well as electroplating, printed circuit board (PCB) manufacturing, and nanomaterial preparation.​ Their application extends to various hydrometallurgical processes including zinc electrowinning and nickel electrowinning, serving both new smelting projects and existing facility upgrades across the non-ferrous metals industry.

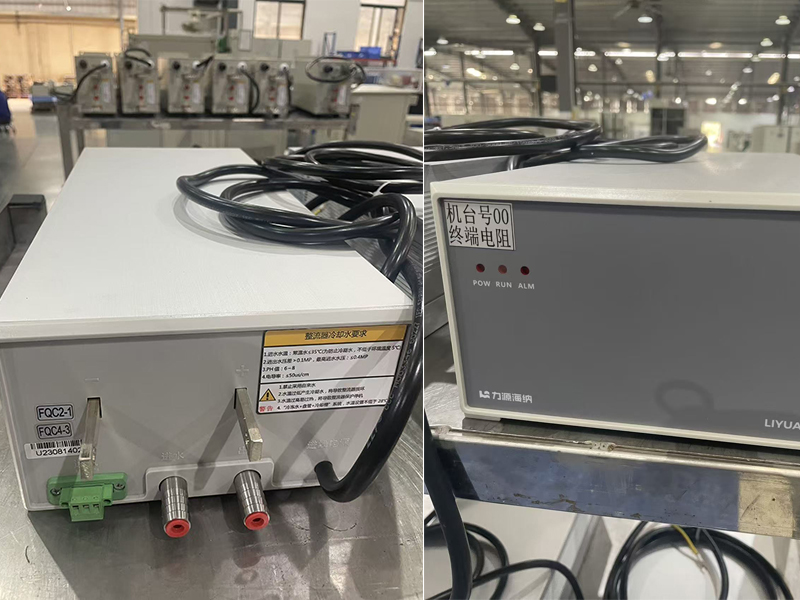

Field application diagram

Technology Advantages

› Dual-channel hot spare, scramble-free switching

› High-precision steady current control

› Critical loop redundancy design

› High reliability and stability

› User-friendly operation and easy maintenance

› Soft start and soft shutdown protection

› Automatic fault self-diagnosis

› Disturbance-free on/off loop switching

The Purpose of Copper Electrowinning

The primary purpose of copper electrowinning (EW), which produces electrowon copper, is to efficiently and economically extract high-purity metallic copper from a pregnant leach solution derived from low-grade ores or secondary materials, which are not amenable to conventional smelting methods. It is the crucial final step in the hydrometallurgical processing chain.

Cooling Type for Copper Electrowinning

Air Cooling:Heat dissipation fan + air duct + comb heat sink

Water Cooling：Built-in water circulation line

Technical Parameters

Characteristic Types	Parameter Items	Technical Requirements
Power Types	Power types	Silicon controlled rectifier
	Model and specifications	TBSBY-50A/8V-FMX
	Cooling mode	Water-cooled
	Switch tube type	SCR
Input Characteristics	Rated Input Voltage	Three-phase, AC380V±10% ,50HZ
	Rated Input Power	AC 0.47KVA
	Rated Input Current	AC 0.7A
	Input Power Factor	COSΦ≥0.95
Output Characteristics	Output Voltage	DC  0～8V
	Output Current	DC  0～50A
	Stabilized Current Precision	≤1%（Rated Current)
	According to accuracy	1A，0.1V
	Rated Output efficiency	≥91%
Environmental Conditions	Installation site	Indoor installations
	Altitude	≤2000 meters
	Ambient temperature	-20℃～40℃
	Relative humidity	≤90％
Control Mode	Operating mode	PLC, ADDA, Ethernet, RS485 and RS232
Protection Characteristics	With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function
*OK to Customized according to requirements*

Solution

Liyuan will keep up with the world’s latest technology closely, and uphold the concept of providing customers with high-quality power supplies and professional integrated services.

With advanced design and rich experience in rectifier manufacturing, we will provide the best power solutions as well as the most stable and efficient power supply for users both at home and abroad.

Technical Capability

LIYUAN rectifier is the most competitive brand in China

Company relies on strong technology research and development cooperation basis, created a number of advanced technology, in recent 3 years amounted to more than 30 to apply for a patent, which has nearly 10 patents of invention.

Equipped with the national electric power transformation and control engineering technology research center (branch), and has set up a loan enterprise academician workstation.

Strict implementation of ISO quality management system, and through the CE safety certification, has been implementing ERP management for many years, to achieve the network, systematic computer control, the formation of a standard, efficient modern management system.

Qualification certification

Liyuan adhere to innovation and the continuous improvement of power conversion efficiency and product quality.

The increasing R&D investment every year, and cooperation with China’s well-known universities, we has established the research center of national electric power conversion and control engineering technology.

Especially the related core patents of high-power synchronous rectifier power supply, stay ahead of the whole industry in China.

The ISO 9001 quality management system has been fully implemented in Liyuan, including quality inspection of components in warehouse, production process inspection, and final product inspection.

We adopt advanced scientific quality management system and the most stringent testing methods in the whole process to ensure the stability and reliability of products.

Service

› Packing

1.Small size rectifier packing in carton box separately.

2.Large size rectifier will be packed in wooden case.

3.We guarantee that all the packing is intact when it reaches its destination.

› Shipping

1.30-45 Days after payment.

2.Transport: DHL, FEDEX, UPS, Air shipping, Boat shipping

3.You may choose our shipping partner or your own partner.

› Maintenance

We are pleasant to share our theory and experience on equipment maintenance with users.

We are pleasant to interact with users to collect their tips and know-hows on equipment maintenance.

The module “Maintenance” here is intended to help users solve various problems they possibly encounter during equipment maintenance…

Optional models

Model	Input	Output	Dimension (mm)/L*W*H
TBSB-400A/12V	Three Phase AC380V±10% 50HZ	12V/400A	500*343*183
TBSB-500A/12V	Three Phase AC380V±10% 50HZ	12V/500A	460*310*185
TBSB-600A/12V	Three Phase AC380V±10% 50HZ	12V/600A	500*343*183
TBSB-800A/5V	Three Phase AC380V±10% 50HZ	5V/800A	460*310*185
TBSB-800A/6V	Three Phase AC380V±10% 50HZ	6V/800A	460*310*185
TBSB-800A/12V	Three Phase AC380V±10% 50HZ	12V/800A	780*350*180
TBSB-1000A/12V	Three Phase AC380V±10% 50HZ	12V/1000A	644*330*192
TBSB-1000A/16V	Three Phase AC380V±10% 50HZ	16V/1000A	620*310*180
TBSB-1000A/25V	Three Phase AC380V±10% 50HZ	25V/1000A	700*352*185
TBSB-1000A/36V	Three Phase AC380V±10% 50HZ	36V/1000A	700*352*185
TBSB-1000A/38V	Three Phase AC380V±10% 50HZ	38V/1000A	780*365*187
TBSB-1200A/5V	Three Phase AC380V±10% 50HZ	5V/1200A	580*342*185
TBSB-2000A/5V	Three Phase AC380V±10% 50HZ	5V/2000A	780*310*180
TBSB-1800A/12V	Three Phase AC380V±10% 50HZ	12V/1800A	780*310*180
TBSB-2500A/12V	Three Phase AC380V±10% 50HZ	12V/2500A	1024*340*180
TBSB-3000A/12V	Three Phase AC380V±10% 50HZ	12V/3000A	700*352*185
TBSB-3000A/15V	Three Phase AC380V±10% 50HZ	15V/3000A	824*340*180
TBSB-4000A/10V	Three Phase AC380V±10% 60HZ	10V/4000A	700*362*185
TBSB-4000A/15V	Three Phase AC380V±10% 50HZ	15V/4000A	824*340*180
TBSB-5000A/7V	Three Phase AC380V±10% 50HZ	7V/5000A	700*362*185
TBSB-5000A/15V	Three Phase AC380V±10% 50HZ	15V/5000A	824*340*180

If you require copper electrowinning rectifiers in other specifications, we can customize them to meet your exact requirements. Please feel free to contact us for more details.
