Product Description

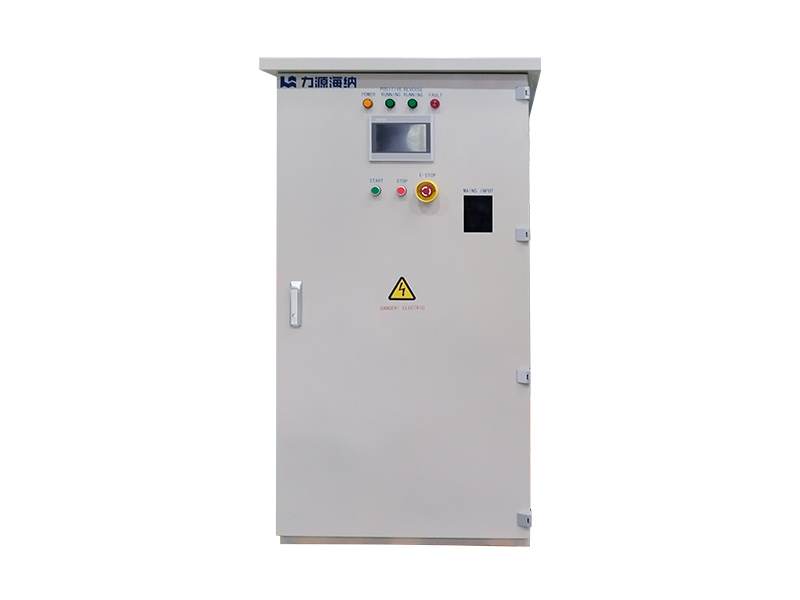

In an ​±15V 12500A Hard Chrome Plating Rectifier, after the AC input voltage is filtered by a rectifier circuit, high-voltage DC power is obtained. The "variable frequency conversion" stage inverts this high-voltage direct current into approximately 30kHz high-frequency alternating current. This high-frequency AC is then transformed into secondary voltage via a high-frequency transformer and filtered through a high-frequency rectifier circuit to produce the required output voltage. The ​electroplating rectifier power supply employs a control circuit to sample output voltage and current. These sampled signals undergo closed-loop feedback to generate pulse width modulation (PWM) signals, which regulate the inverter circuit and maintain stable output voltage/current - a critical requirement for precision electroplating applications.

Product Applications

Manufacturers widely use electroplating rectifier equipment for various surface treatment applications, including PCB electroplating, hard chrome coating, copper plating, zinc plating, gold plating, tin plating, nickel plating,and silver plating, among other metal finishing.

1.Field application diagram：

2.Industry application examples:

Technology Advantages

› Modular parallel connection

› Optional N+1 redundant backup

› Capable of online hot maintenance

› RS485 digital control function

› Low-voltage MOS tube rectification

› High power factor, high efficiency

› Reasonable structural design

› Effective sealed isolation

› No water joint design inside the unit

› Practical and effective multiple protection system

› Full soft switch technology

› High reliability

› Low noise, high protection level

Role of electroplating

Stops Rust & Chemical Damage

Zinc plating on steel parts creates a barrier against corrosion.

Reduces Wear & Tear

Hard chrome plating cuts friction, making components last longer.

Looks Matter Too

Gold finishes for jewelry / Chrome for car trim – it’s about aesthetics.

Keeps Current Flowing

We plate copper onto circuit boards because it conducts electricity best.

Better Solder Joints

Tin plating helps electronics components bond properly during assembly.

Fix Worn-Out Parts

Rebuild engine crankshafts or bearings by adding new plating material.

Specialized Solutions

Aerospace needs nickel plating: handles extreme heat.

Medical implants use biocompatible coatings so bodies don’t reject them.

Types of electroplating

Copper Plating
Primarily for base layers – boosts corrosion resistance and helps subsequent coatings stick better.
Watch for: Oxidation (forms non-conductive patina). Always needs a topcoat.

Nickel Plating
Works as a base layer or decorative finish. Fights corrosion/wear – electroless nickel rivals chrome durability.
Heads-up: Magnetic nature messes with electronics (e.g., DIN connectors). Avoid in signal-critical areas.

Gold Plating
King of contact surfaces: Optimizes conductivity and signal clarity.
Stable performance; High cost

Palladium-Nickel Plating
Outperforms gold: Better signal transmission + extreme wear resistance.
Why it wins: Palladium’s anti-corrosion + nickel’s hardness.

Tin-Lead Plating
Was the solderability champ, now phased out (lead regulations).
Switched to: Bright/matte tin alternatives.

Silver Plating
Unbeatable conductivity/signal quality – still works when oxidized.
Downsides: Tarnishes without maintenance; premium pricing.

Elements of Electroplating

› Cathode
The object to be plated (e.g., connector terminals or metal surfaces) where metal ions deposit into a solid coating.

› Electroplating Anodes Explained

Soluble Anodes
• Material: Matching plating metal (e.g., copper anodes for copper baths)
• Function: Dissolves to maintain metal ion concentration
• Key use: Standard plating operations

Insoluble Anodes
• Material: Non-consumable substrates (e.g., titanium/iridium oxide)
• Function: Facilitates electron transfer without dissolution
• Key use: Precious metal plating (white gold, etc.)

› Plating Solution
Contains ions of the target metal. Composition and concentration determine coating thickness, adhesion, and appearance.

› Plating Tank

Material Requirements:
• Must handle corrosive environments and thermal cycling
• Typical choices: polypropylene or titanium alloys

Role: Stores solution and maintains stable plating conditions.

› Rectifier

Converts AC to DC power to drive electrolysis.

Adjust voltage/current to control deposition speed and coating thickness.

› Auxiliary Equipment

​Filters: Remove impurities from the solution.

​Heaters: Maintain solution temperature.

​Stirrers: Ensure uniform mixing.

Component Part for Electroplating

Cooling Type for Electroplating

Air Cooling:Heat dissipation fan + air duct + comb heat sink

Water Cooling：Built-in water circulation line

Technical Parameters

Characteristic Types	ParameterItems	Technical Requirements
Input feature	Rate Input Voltage	Three-phase, AC380V±10% 60HZ
	Rate Input Current	AC 330A
	Rate Input Power	217KVA
	Input Power Factor	COSΦ≥0.95
Output feature	Output Voltage	DC  0～±15V
	Output Current	DC  0～+12500A; 0～-12500A
	Stabilized Current Precision    precision Stab	≤1%
	Stabilized Voltage Precision	≤1%
	Ripple coefficient of the rated current	≤3%(Rated current)
	Rated output efficiency	η≥91%
Rectification feature	Constitution of the plant	The power cabinet 12500A/±15V consists of 5 TBSA-2500A / ± 15V sub-units in parallel
	Rectifier system	full-wave rectification
Insulation feature	Dielectric strength	Between primary and secondary: 2000V rms 1min  ;
		Between primary and ground: 2000V rms 1min
		Between control circuit and ground: 1500V rms 1min
	Insulating Resistance	Input—Output：≥5MΩ
		Input—Chassis：≥5MΩ
		Output—Chassis；≥5MΩ
Protection feature	Overvoltage, overcurrent, short circuit circuit, phase deficiency, overheating, water leakage and other protection functions
Other feature	Noise	≤60Db
	MTBF	≥50000h
	Transformer insulation grade	Class B
	Running status	The product can be run continuously at full load

Solution

Liyuan will keep up with the world’s latest technology closely, and uphold the concept of providing customers with high-quality power supplies and professional integrated services.

With advanced design and rich experience in rectifier manufacturing, we will provide the best power solutions as well as the most stable and efficient power supply for users both at home and abroad.

Technical Capability

LIYUAN rectifier is the most competitive brand in China

Company relies on strong technology research and development cooperation basis, created a number of advanced technology, in recent 3 years amounted to more than 30 to apply for a patent, which has nearly 10 patents of invention.

Equipped with the national electric power transformation and control engineering technology research center (branch), and has set up a loan enterprise academician workstation.

Strict implementation of ISO quality management system, and through the CE safety certification, has been implementing ERP management for many years, to achieve the network, systematic computer control, the formation of a standard, efficient modern management system.

Qualification certification

Liyuan adhere to innovation and the continuous improvement of power conversion efficiency and product quality.

The increasing R&D investment every year, and cooperation with China’s well-known universities, we has established the research center of national electric power conversion and control engineering technology.

Especially the related core patents of high-power synchronous rectifier power supply, stay ahead of the whole industry in China.

The ISO 9001 quality management system has been fully implemented in Liyuan, including quality inspection of components in warehouse, production process inspection, and final product inspection.

We adopt advanced scientific quality management system and the most stringent testing methods in the whole process to ensure the stability and reliability of products.

Service

› Packing

1.Small size rectifier packing in carton box separately.

2.Large size rectifier will be packed in wooden case.

3.We guarantee that all the packing is intact when it reaches its destination.

› Shipping

1.30-45 Days after payment.

2.Transport: DHL, FEDEX, UPS, Air shipping, Boat shipping

3.You may choose our shipping partner or your own partner.

› Maintenance

We are pleasant to share our theory and experience on equipment maintenance with users.

We are pleasant to interact with users to collect their tips and know-hows on equipment maintenance.

The module “Maintenance” here is intended to help users solve various problems they possibly encounter during equipment maintenance…

If you need other power electroplating rectifiers, we can custom design them according to customer requirements. Please contact us.
