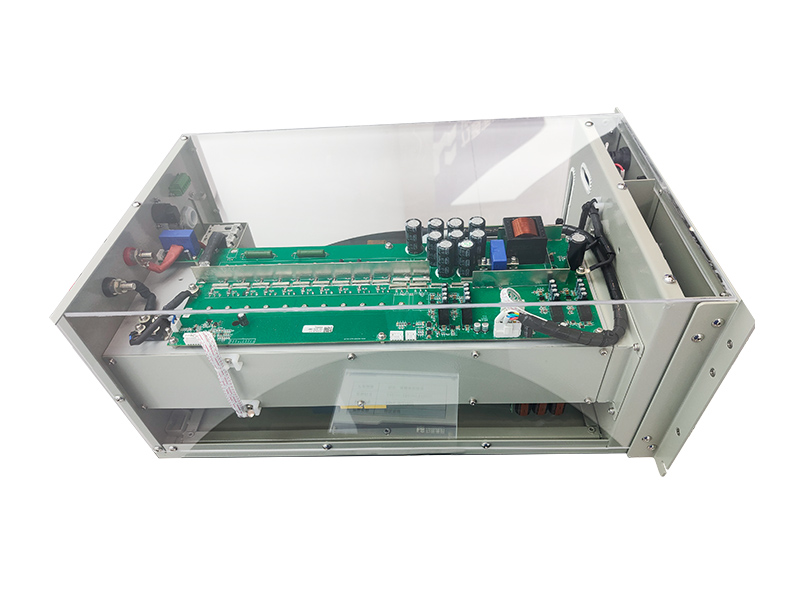

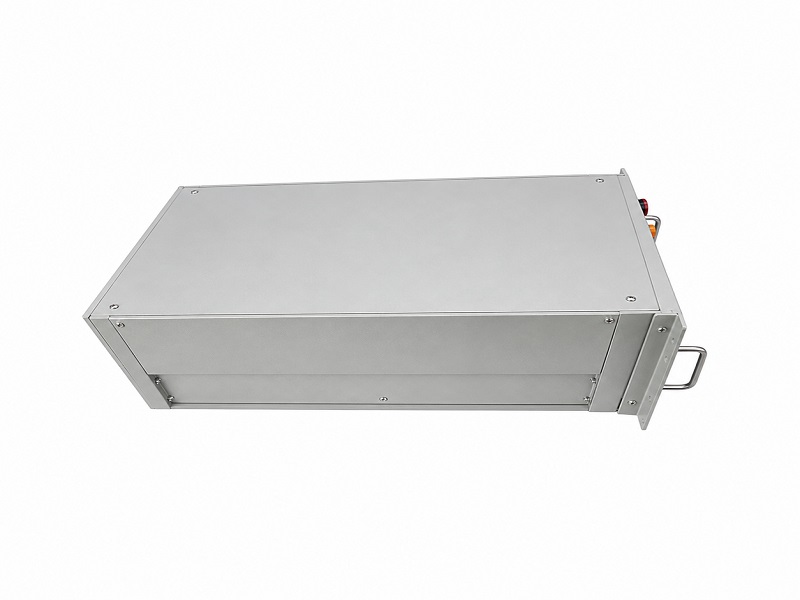

Product Description

Designed specifically for demanding applications like Precious Metal Plating and High Precision Electrolytic Polishing, this industrial linear power supply 40V 40A low ripple high efficiency delivers the exceptionally clean, stable power essential for flawless results. Its core strength lies in delivering very low current ripple, ensuring process consistency where even minor fluctuations are unacceptable. Engineered for high reliability, the unit features a robust yet practical structural design incorporating full soft switching technology.

Beyond pure performance, the design prioritizes durability and integration. Effective sealing and isolation provide high protective properties against environmental factors. An optimized cooling system ensures only the radiator is exposed in the air duct, maximizing efficiency while protecting internals. The practical and effective multiple protection system safeguards both the supply and your process. Flexibility is offered through standard and special wiring options, while RS485 digital control enables seamless remote monitoring and system integration. This power supply is built for dependable operation in the most exacting industrial environments.

Product Applications

Mainly used in the precious metal plating industry (including gold plating, silver plating, and jewelry plating), high-precision electrolytic polishing processes (commonly applied to stainless steel), and various other metal finishing applications.

1.Field application diagram：

2.Industry application examples:

Technology Advantages

› RS485 digital control function

› Very low current ripple

› Reasonable structural design

› Only the radiator is in the air duct

› Effective sealing and isolation

› High protective properties

› Standard wiring and special wiring

› Practical and effective multiple protection system

› Full soft switching technology

› High reliability

Role of electroplating

Stops Rust & Chemical Damage

Zinc plating on steel parts creates a barrier against corrosion.

Reduces Wear & Tear

Hard chrome plating cuts friction, making components last longer.

Looks Matter Too

Gold finishes for jewelry / Chrome for car trim – it’s about aesthetics.

Keeps Current Flowing

We plate copper onto circuit boards because it conducts electricity best.

Better Solder Joints

Tin plating helps electronics components bond properly during assembly.

Fix Worn-Out Parts

Rebuild engine crankshafts or bearings by adding new plating material.

Specialized Solutions

Aerospace needs nickel plating: handles extreme heat.

Medical implants use biocompatible coatings so bodies don’t reject them.

Types of electroplating

Copper Plating
Primarily for base layers – boosts corrosion resistance and helps subsequent coatings stick better.
Watch for: Oxidation (forms non-conductive patina). Always needs a topcoat.

Nickel Plating
Works as a base layer or decorative finish. Fights corrosion/wear – electroless nickel rivals chrome durability.
Heads-up: Magnetic nature messes with electronics (e.g., DIN connectors). Avoid in signal-critical areas.

Gold Plating
King of contact surfaces: Optimizes conductivity and signal clarity.
Stable performance; High cost

Palladium-Nickel Plating
Outperforms gold: Better signal transmission + extreme wear resistance.
Why it wins: Palladium’s anti-corrosion + nickel’s hardness.

Tin-Lead Plating
Was the solderability champ, now phased out (lead regulations).
Switched to: Bright/matte tin alternatives.

Silver Plating
Unbeatable conductivity/signal quality – still works when oxidized.
Downsides: Tarnishes without maintenance; premium pricing.

Elements of Electroplating

› Cathode
The object to be plated (e.g., connector terminals or metal surfaces) where metal ions deposit into a solid coating.

› Electroplating Anodes Explained

Soluble Anodes
• Material: Matching plating metal (e.g., copper anodes for copper baths)
• Function: Dissolves to maintain metal ion concentration
• Key use: Standard plating operations

Insoluble Anodes
• Material: Non-consumable substrates
• Function: Facilitates electron transfer without dissolution
• Key use: Precious metal plating (white gold, etc.)

› Plating Solution
Contains ions of the target metal. Composition and concentration determine coating thickness, adhesion, and appearance.

› Plating Tank

Material Requirements:
• Must handle corrosive environments and thermal cycling
• Typical choices: polypropylene or titanium alloys

Role: Stores solution and maintains stable plating conditions.

› Rectifier

Converts AC to DC power to drive electrolysis.

Adjust voltage/current to control deposition speed and coating thickness.

› Auxiliary Equipment

​Filters: Remove impurities from the solution.

​Heaters: Maintain solution temperature.

​Stirrers: Ensure uniform mixing.

Component Part for Electroplating

Cooling Type for Electroplating

Air Cooling:Heat dissipation fan + air duct + comb heat sink

Water Cooling：Built-in water circulation line

Technical Parameters

Parameter Items	Technical Requirements	Remarks
Input voltage	single-Phase AC208V±10% 50/60Hz
Output current	DC 0~40A Adjustable
Output voltage	DC 0~40V Adjustable
Current Rise Time	0-90% Max Output, <100us	Refers to the response time from the power supply receiving an external current set command to the current output reaching the set value
Rated steady current precision	≤0.1%
Rated steady voltage precision	≤0.1%
Current Ripple & Noise	<100mA
Control mode	Constant Voltage (CV) / Constant Current (CC)
Setting Mode	Local touch screen control
Control Method	EtherCAT Communication 2. External Analog Controla. External analog voltage input controls current output and voltage output, e.g.: 0-10V analog output corresponds to 0-40V.                        b. Power supply actual voltage/current readback, e.g.: 0-10V analog input corresponds to actual current 0-40A).                                       c. Constant Voltage (CV) and Constant Current (CC) mode switchingd. Power supply remote On/Offe. Power supply status (alarm, ready, etc.)	Two control methods, select one. EtherCAT communication is preferred.
Cooling method	Air Cooling
Installation site	Indoor installations
Altitude	≤2000 m
Ambient temp	-20~40℃
Relative humidity	≤90%
Protection Characteristics	Overvoltage, undervoltage, overcurrent, phase loss, short circuit, overheating
